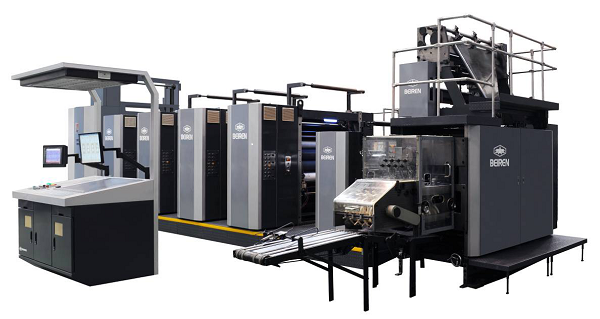

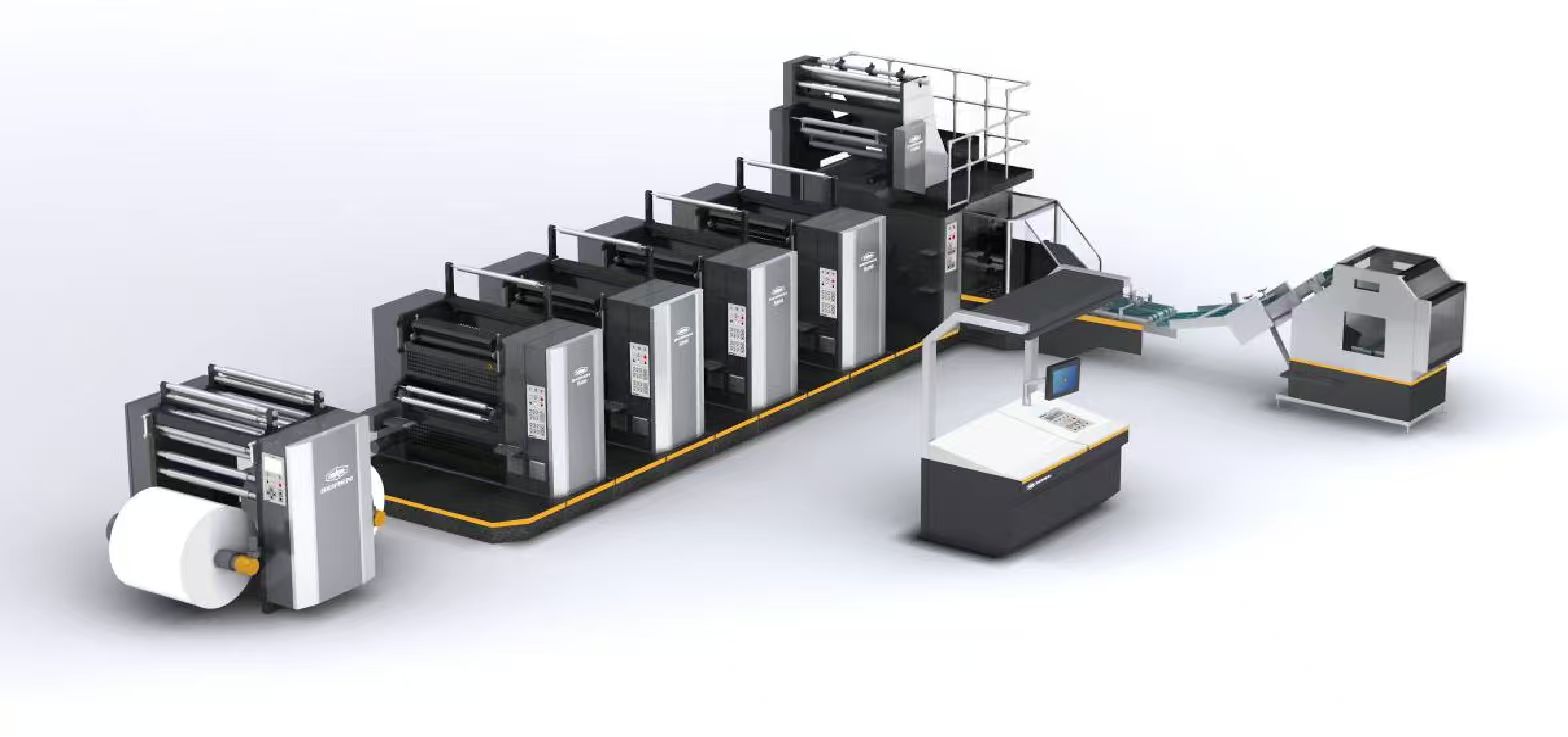

WEB OFFSET PRESS FOR BOOK

0086-13810577349
Share:
Copy link
Collection


Structural characteristics

Outline



- B-B typed perfector

- Modular design

- Shaft or shaftless drive

- Basic modular:

1. Zero speed automatic splicer

2. B-B typed printing unit

3. High speed full function folder.

- 2 or 4 colour printing on both side.

- Paper type

1. Bible paper

2. Newspaper

3. Offset paper




Machine Features



1.  BEIREN logo display on each printing unit shows the working status.

2. Lateral and Circumferential adjustment on the main console

3. Manual or automatic ink fountain adjustment for option.

4. Modular design.

5.  Automatic centralized lubrication system.

6.  Bearer-to-bearer printing.

7.  Tapered roller bearing with pretension force

8.  Special treated printing cylinders anti-rust and durable.



technical parameter

Technical Parameters

BEIREN B508

BEIREN B542

BEIREN B787

Quarter Fold Book Size

185×244mm

185×260mm

185×260mm

Max. Web Width

787 (860)mm

Max. Web Diameter

1270mm

Paper Weight

40-80g/㎡

Cutoff

508mm

542mm

550mm

Printing Capability

Half-fold:36000rph

Quarter fold \ Double Parallel Fold:30000rph

Printing cylinder Adjustment amount

Lateral :

±2.5mm

Circumferential:

±1.5mm

Folding Format

half fold, quarter fold, Double Parallel Fold

half fold, quarter fold,

half fold, quarter fold, Double Parallel Fold

Transmission Model

shaft (shaftless optional)

Printing unit weight

4200kg

Folding unit weight

7000kg



Technical Parameters

BEIREN B598

BEIREN B620

BEIREN B890

Quarter Fold Book Size

210×285mm

210×297mm

210×297mm

Max. Web Width

890mm

Max. Web Diameter

1270mm

Paper Weight

40-80g/㎡

Cutoff

598mm

620mm

630mm

Printing Capability

Half-fold:36000rph

Quarter fold\ Double Parallel Fold:30000rph

Printing cylinder Adjustment amount

Lateral :

±2.5mm

Circumferential:

±1.5mm

Folding Format

half fold, quarter fold, Double Parallel Fold

Transmission Model

shaft (shaftless optional)

Printing unit weight

4800kg

Folding unit weight

9000kg
